Moving a fuse box out of an Eagle Rock kitchen, or choosing where a new meter and mast should go, is a decision an owner here can make without a design review, because City Planning’s map of Historic Preservation Overlay Zones shows no overlay zone in Eagle Rock. LA Knob and Tube replaces knob and tube wiring in this Northeast Los Angeles neighborhood between Highland Park and Glendale, and that freedom shapes how a knob and tube replacement in Eagle Rock can redesign the service along with the circuits.
The houses are as old as Highland Park’s. Census Bureau figures for ZIP code 90041 put 43.1% of homes before 1940, including 2,885 owner-occupied single-family houses. LADBS recorded 95 single-family rewire permits in 90041 from January 2020 to October 2026, about 39 for every 1,000 electrical permits on houses there, one of the higher rates in the city.
No HPOZ, and why that matters for the service
The nearest overlay zone is Highland Park-Garvanza, to the south. Interior rewiring is exempt from HPOZ review anyway, so for the wiring inside the walls the difference is small. It shows up outside.
A full knob and tube replacement often comes with a new panel and sometimes a new service. LADBS permit descriptions across the city pair the two regularly, with entries such as old fuses removed, knob and tube demolished and a new panel installed. When that happens in an HPOZ, the preservation plan can steer the mast and meter toward the rear of the house. In Eagle Rock, the location is set by the practical questions: where LADWP can bring the service, where the panel can be reached easily, and where the new circuits are shortest. Moving a fuse box out of a kitchen or hallway is simpler to plan without a design review step. The panel upgrade page covers when a new panel is needed and when the existing one can stay.
What the permits say about Eagle Rock houses
LADBS work descriptions rarely name knob and tube, but 90041 has eight permits that do, among the most of any ZIP code in the city. Recent ones describe removing and replacing knob and tube wiring throughout a home, and replacing knob and tube while adding outlets. Those two phrases sum up the two common decisions here.
The first is scope. A circuit map sorts the house into active knob and tube, dead runs that are only abandoned, and mixed circuits where later cable was spliced onto the old conductors. When most of the house is still original, whole-house rewiring is usually simpler to plan as one job. When a previous remodel already replaced the kitchen and bath, a partial replacement of the remaining circuits may cover it, with a written list of anything left.
The second is capacity. Pre-war houses were wired for a few lights and a handful of outlets. A new layout can add outlets where a family actually uses them, dedicated kitchen circuits and a bathroom circuit, while the routes are already open. Those additions are listed separately on the quote so their cost is visible.
Crawlspaces and the retrofit overlap

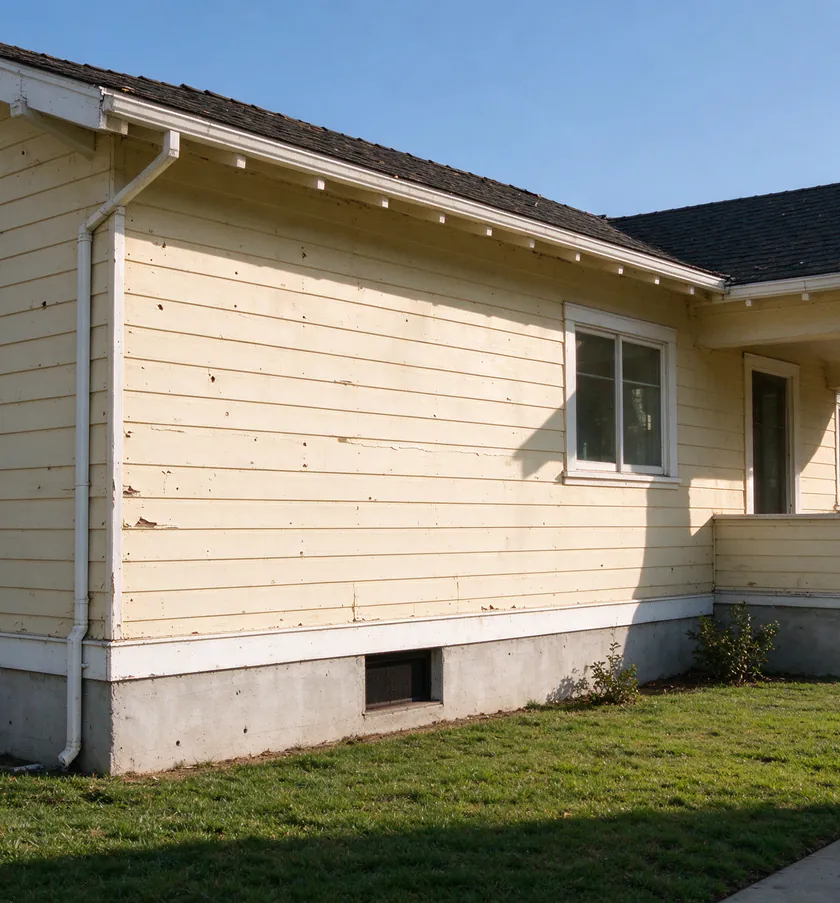

Raised wood floors are common enough in Eagle Rock to show up in the retrofit records: LADBS issued 227 permits in 90041 for cripple-wall bracing and foundation bolting under the city’s standard retrofit plan since January 2020. Those permits only exist where a crawlspace does.
For an electrician, a crawlspace is the easy path to first-floor outlets, fed up through the floor plate with an opening only at the box. A seismic retrofit adds plywood to the cripple walls and anchor bolts along the sill, which can block or crowd those routes once it is done. When both jobs are planned, the order is worked out so neither undoes the other. The seismic retrofit and rewiring guide explains the sequencing.
Permit, slope access and arc-fault breakers
After the circuit map, the permit is pulled from LADBS. Nearly every house rewire permit in Los Angeles is issued as an express permit without plan check, and the inspector visits before walls are closed and again at the end. Circuits come out of service one group at a time, so most rooms have power on most days.
Where the house is on a slope, the crawlspace can be tall on the downhill side and tight uphill, and attic clearance varies with roof pitch. Those measurements decide how many plaster openings are needed beyond the boxes, and the quote lists each opening and who patches it. The rewiring quote checklist shows what else to compare between bids.
New and replaced circuits in living areas get arc-fault protection and tamper-resistant receptacles under the California Electrical Code. A fuse box has no place for AFCI breakers, which is a common reason the panel changes as part of a full rewire. The AFCI and GFCI guide explains what each device protects against.
LADWP and the meter
If the service or meter changes, LADWP gets involved. It asks that the meter spot be verified with its electric service staff before a new meter panel is installed, and it needs the LADBS electrical permit on file before its inspector visits. LADWP says a meter set generally follows within about ten working days when no other utility work is needed, and underground service estimates take six to eight weeks. LADWP generally does not charge to install an upgraded service when its existing lines can carry the new demand.
Summer heat in the attic
Eagle Rock sits between two NOAA climate stations with very different summers. Downtown Los Angeles averages an August high of 84.0°F, and Pasadena, a few miles east, averages 91.3°F. Eagle Rock’s attics are likely closer to the warmer end, so attic-heavy circuit work is easier to schedule outside of late summer.
FAIR Plan growth in 90041 and the records carriers ask for
California FAIR Plan residential policies in 90041 rose from 240 in September 2021 to 413 in September 2025. The FAIR Plan gives no reasons, and the growth says nothing about wiring by itself, but it reflects a market where carriers differ on knob and tube. A documented circuit map and a final inspection record are what an owner can show when a carrier asks. The knob and tube inspection produces that map before any work starts.
Nearby, Highland Park and Mount Washington have similar houses inside an HPOZ, Glendale has its own permit office and utility, and Pasadena publishes its permit and utility fees.
